Fuji 500x:

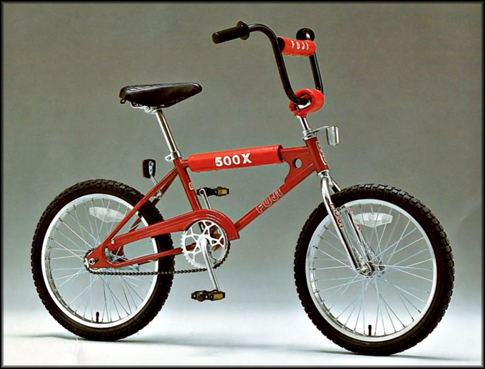

Pictured: 1983 Fuji 500x
In 1983 Fuji changed the look of the MX-500 and began calling it the 500x. The 500x was available from 1983 to 1985. The specifications remained largely the same. Noticable differences are the frame decals, labeled frame bar pads and a change from round to square/rectangular reflectors. In 1984 and 1985 they changed from a vynil padded seat to a plastic seat and in the catalog pictures the tires almost appear to be a fat skinny 1.75x2.125 combo.
1983 Fuji 500X
Frame Size: 12 ½” Angle 68° x 66°
Frame: FUJI BMX steel tubing
Fork: Standard tubing, C.P.* bottom note assuming Chrome plated
Handlebars: BMX steel bar
Stem: SR alloy stem
Brakes:
Cranks: Sugino 165mm one-peice
Front Sprocket: 40t
Rear Sprocket: Suntour 18t sprocket
Chain: 1/2” x 1/8”
Pedals: BMX Steel
Rims: BMX Steel 20” x 2.125”
Hubs: Front-BMX medium flange steel, Rear-Suntour Coaster hub brake
Spokes: #12 steel
Tires: 20x2.125” W/O knobby
Saddle/Seat: Vinyl padded
Seat Post: BMX Steel
Grips: Vinyl
Other Parts: Frame bar pad, Bar pad, stem pad, Chainguard-Steel, Reflectors-Cate-Eye
Colors: Metallic Blue, Silver, Red
Weight: approx. 32lbs

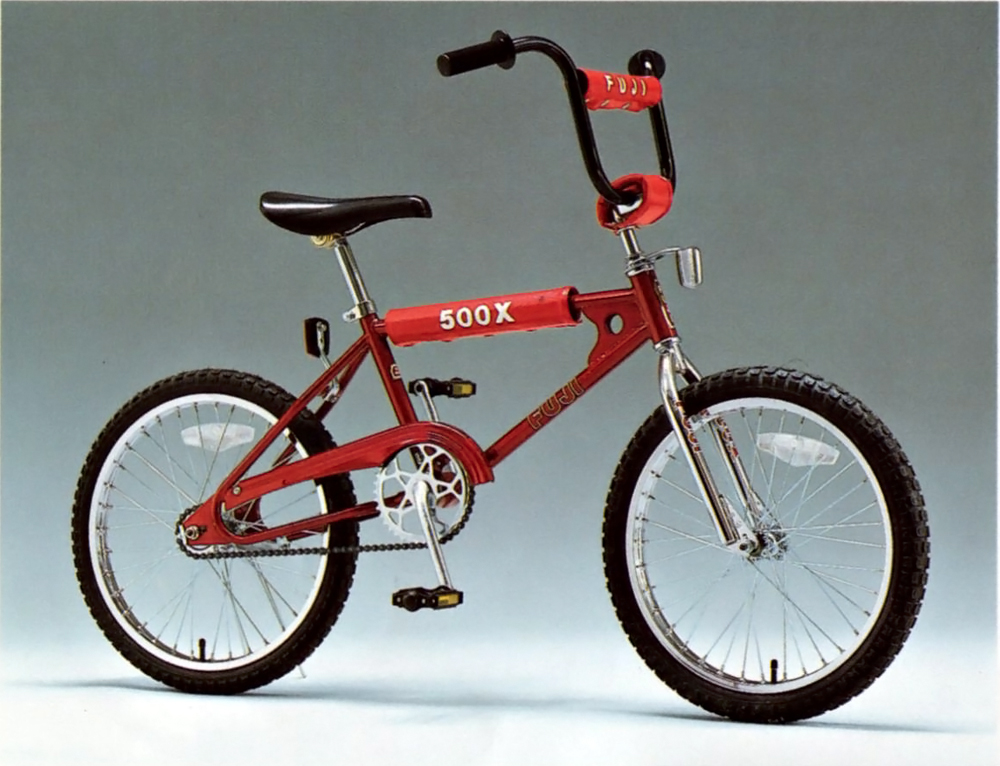

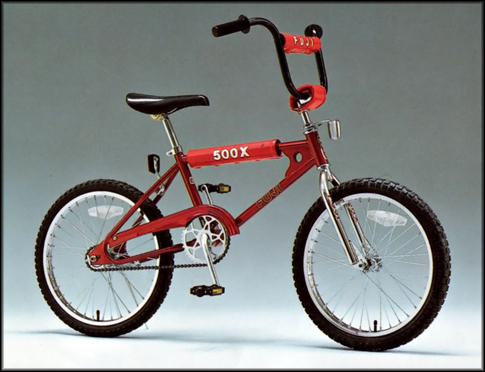

1984-5 Fuji 500x - Notice the seat change
1984 Fuji 500X
Frame Size: 12 ½” Angle 68° x 66°
Frame: FUJI BMX steel tubing
Fork: Steel tubing, C.P.* bottom note assuming Chrome plated
Handlebars: BMX steel bar
Stem: SR alloy stem
Brakes:
Cranks: Sugino 165mm one-peice
Front Sprocket: 40t
Rear Sprocket (Cluster): Suntour 18t sprocket
Chain: 1/2” x 1/8”
Pedals: BMX Steel
Rims: BMX Steel 20” x 2.125”
Hubs: Front-BMX medium flange steel, Rear-Suntour Coaster hub brake
Spokes: #12 steel
Tires: 20x1.75” knobby
Saddle/Seat: BMX Plastic
Seat Post: BMX Steel
Grips: Vinyl
Other Parts: Frame bar pad, Bar pad, stem pad, Chainguard-Steel, Reflectors-Cate-Eye
Colors: Metallic Blue, Silver, Red
Weight: approx. 32lbs
1985 Fuji 500x
Frame Size: 12 ½” Angle 68° x 66°
Frame: FUJI BMX tubing
Fork: C.P.* bottom note assuming Chrome plated
Handlebars: BMX steel bar
Stem: SR alloy stem
Brakes:
Cranks: Sugino 165mm one-peice
Front Sprocket: 40t
Rear Sprocket (Cluster): Suntour 18t sprocket
Chain: 1/2” x 1/8”
Pedals: BMX Steel
Rims: BMX Steel 20” x 2.125”
Hubs: Front-BMX medium flange steel, Rear-Suntour Coaster hub brake
Spokes: #12 steel
Tires: 20x1.75” knobby
Saddle/Seat: BMX Plastic
Seat Post: BMX Steel
Grips: Vinyl
Other Parts: Frame bar pad, Bar pad, stem pad, Chainguard-Steel, Reflectors-Cate-Eye
Colors: Metallic Blue, Silver, Red
Weight: approx. 32lbs
 |
